This born to verify the sonic performances of many Non Oversampling DAC.

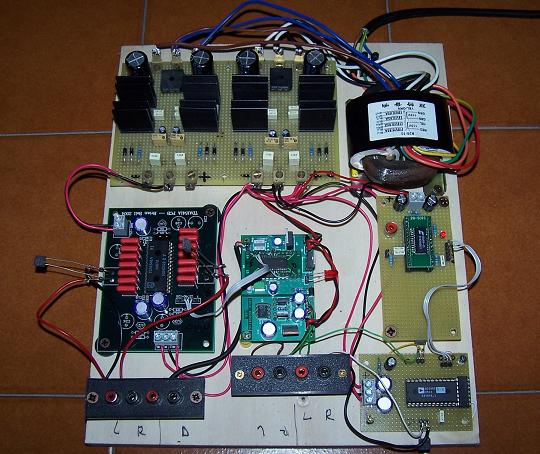

To build the test I have created an evaluation board for each chip and a common environment with all the necessary power supply.

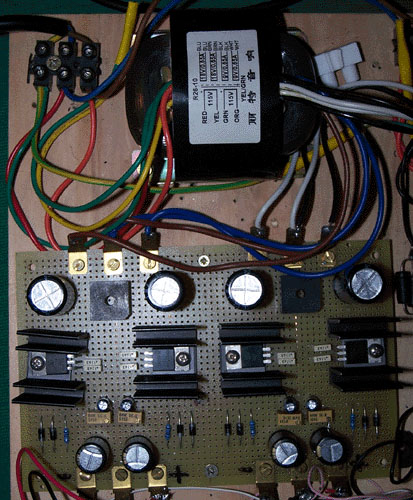

|The DAC power supply use the
LM337 to create the
+5V, -5V, +12V and -12V.
I have used a good 50W R-Core transformer get from DIY Club at a very good price.

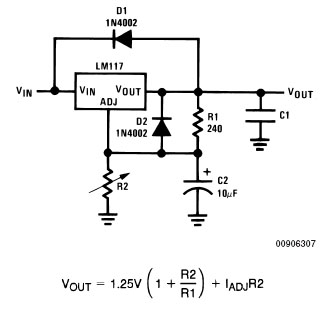

For a fine tune of output voltage I have used a Spectrol multiturn cermet trimmer (R2) with a value of 1Kohm for the 5V and 5Kohm for the 12V. Reverse diodes and capacitors polarity to get the schematic of the negative voltage.
I have used in all the measurements the Clio system by Audiomatica with the Transit by M-Audio to use the USB port of my portable pc (instead of the PCI audio board) and with the Audiophile USB by M-Audio to have a spdif ouput.

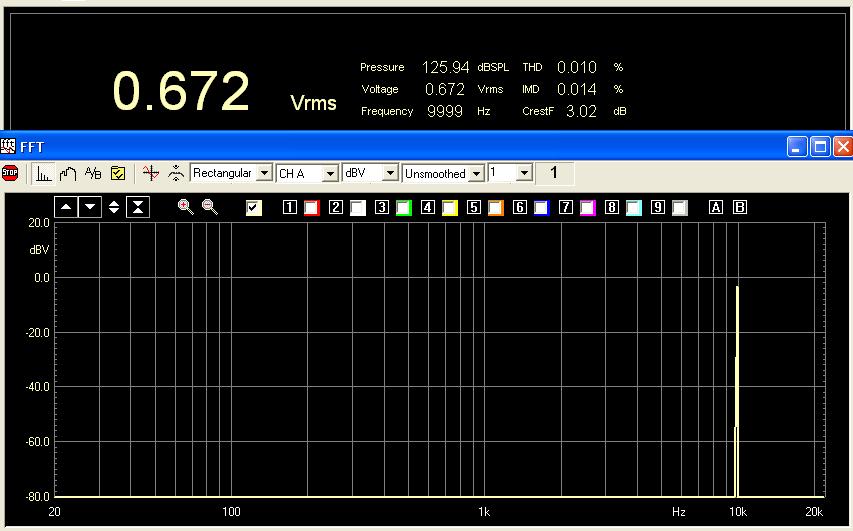

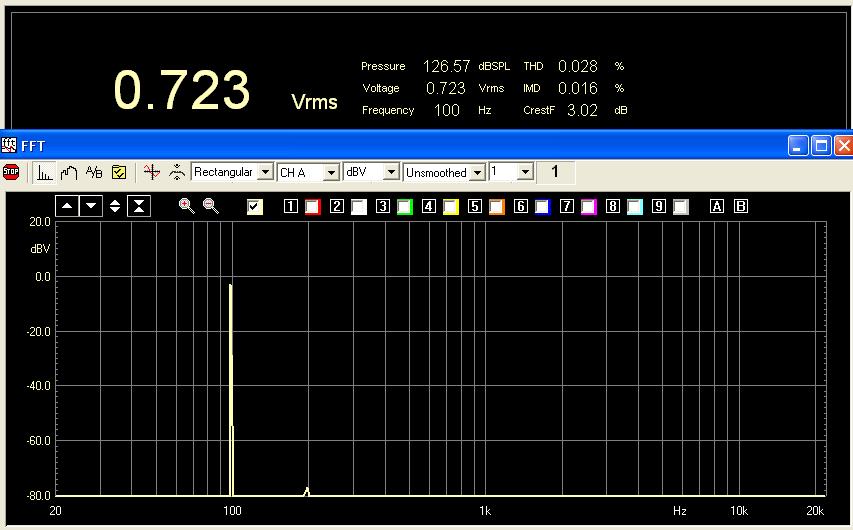

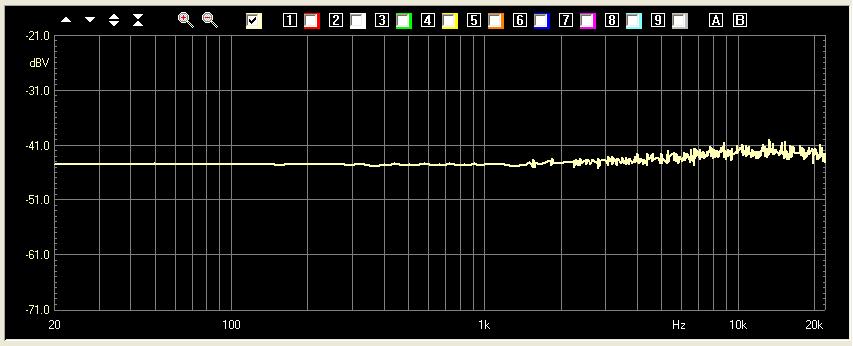

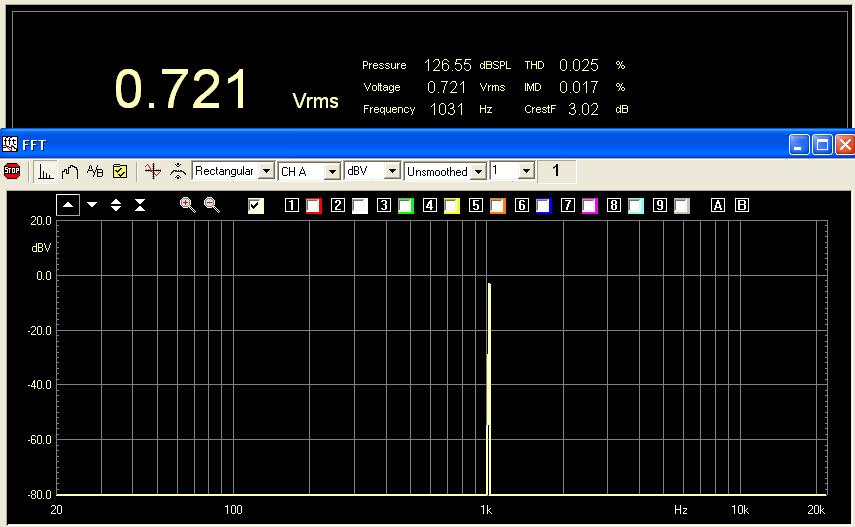

Here some test on TDA1543 using like I/V a 1Kohm MK132 Caddock.

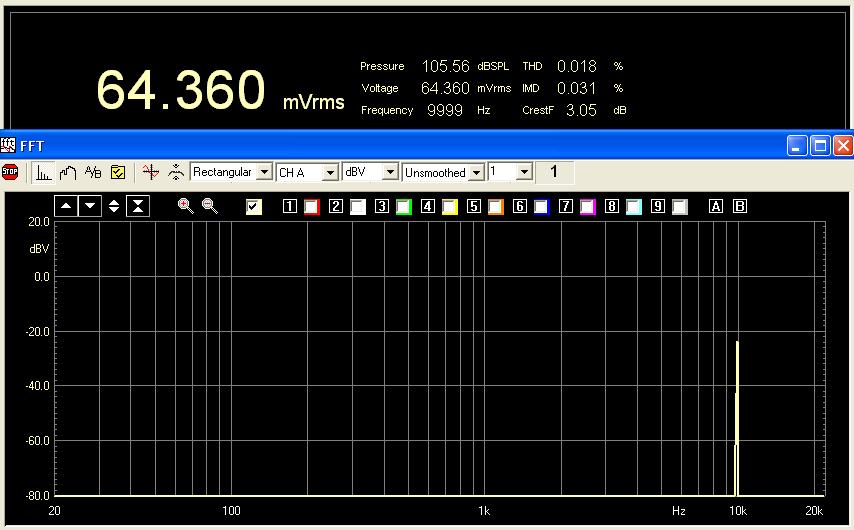

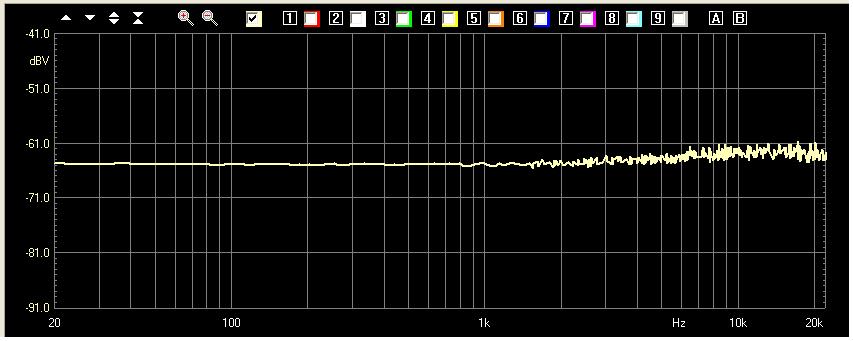

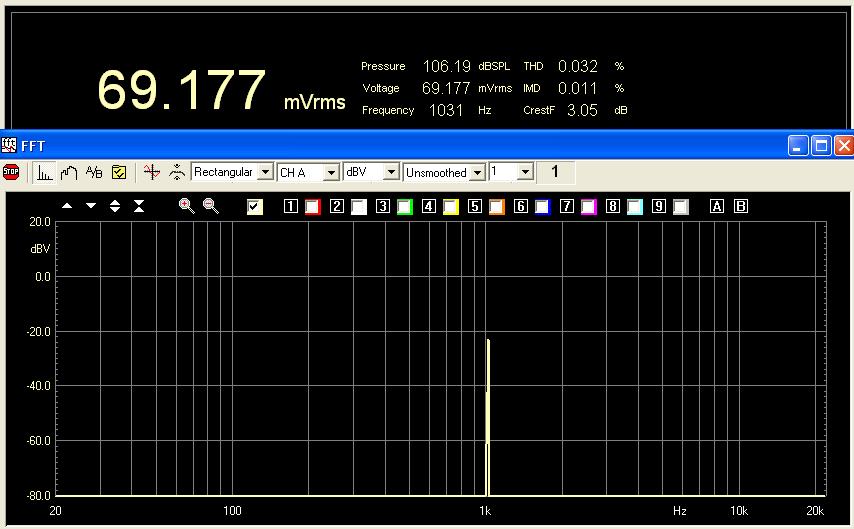

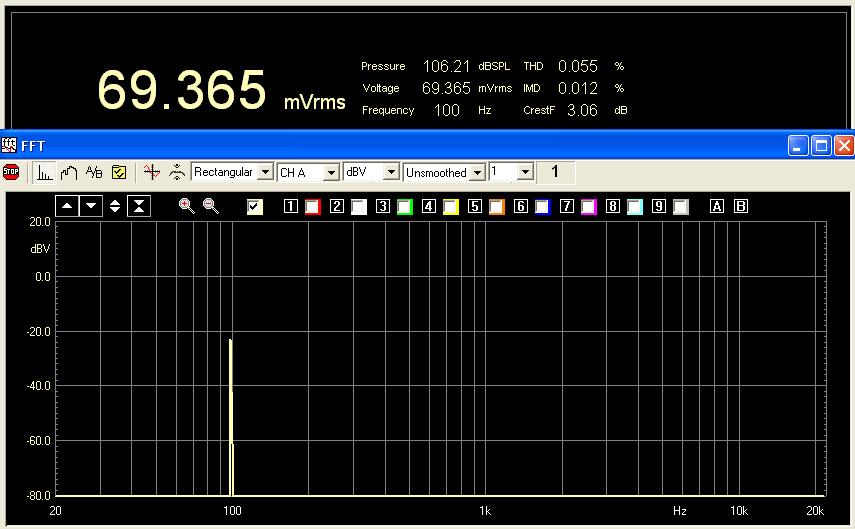

Here some test on TDA1541A using like I/V a 50ohm MK132 Caddock.

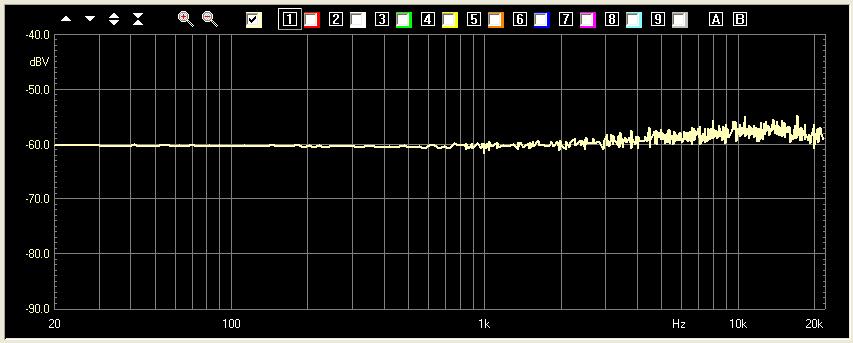

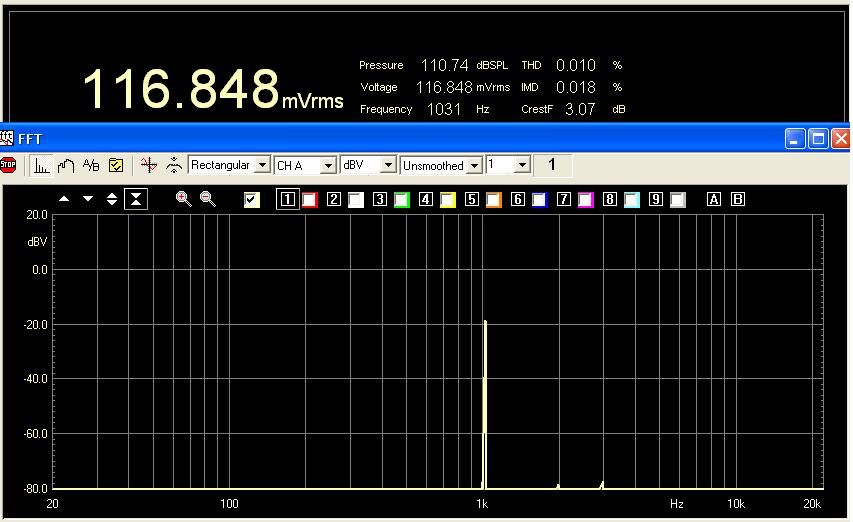

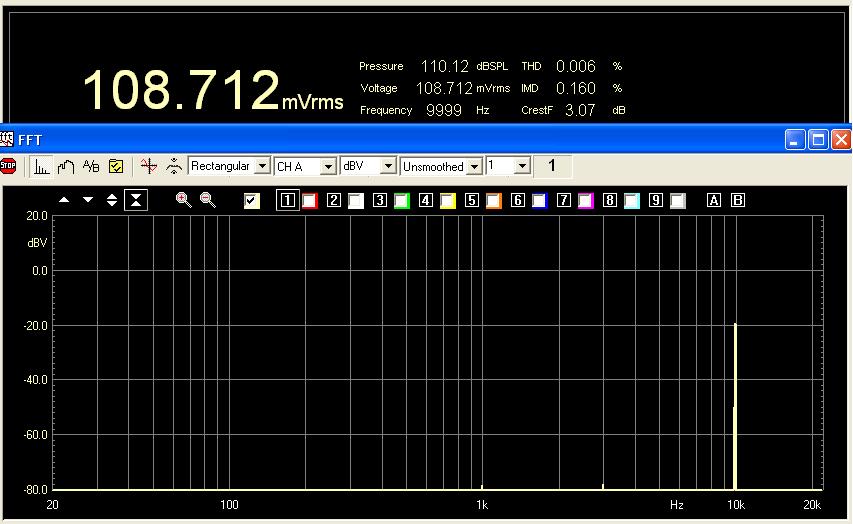

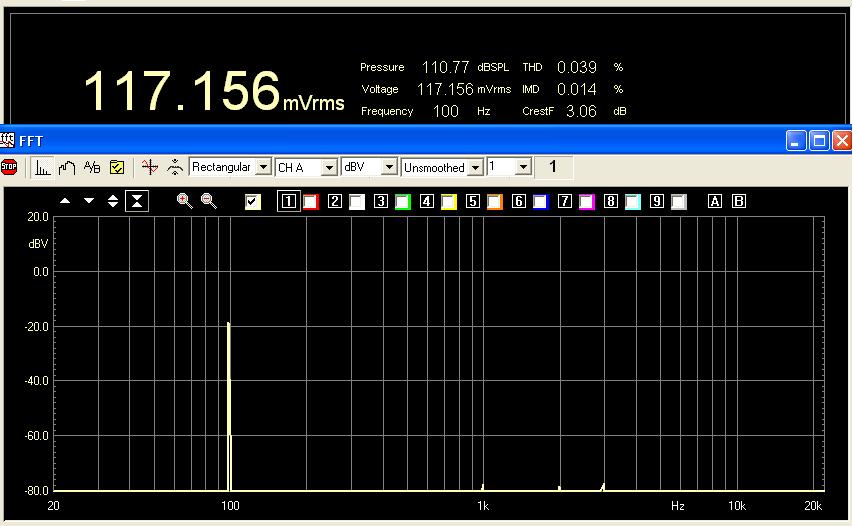

Here some test on AD1865 using like I/V a 200ohm MK132 Caddock.
All these 3 DAC give a more natural sound if comparated with my DAC Final with AD1896/AD1955.
The TDA1541 and TDA1543 have a very similar sound and the differences are not easy to find.
The AD1865 have a strong gap up to the TDA chips.
With the AD1865 all is natural but without lose details and compression.
I consider the AD1865 the best DAC and it is confirmed by the Audionote choice.
